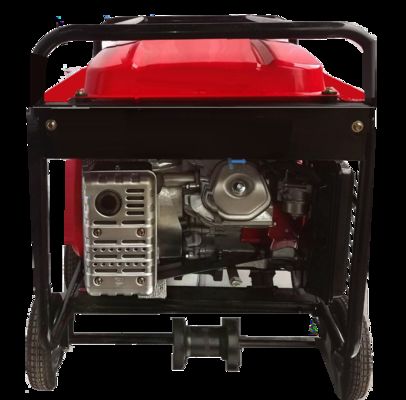

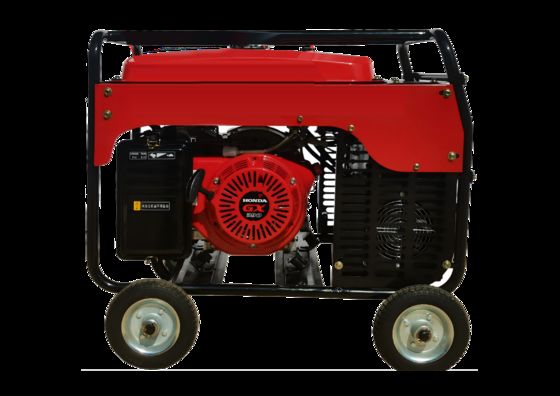

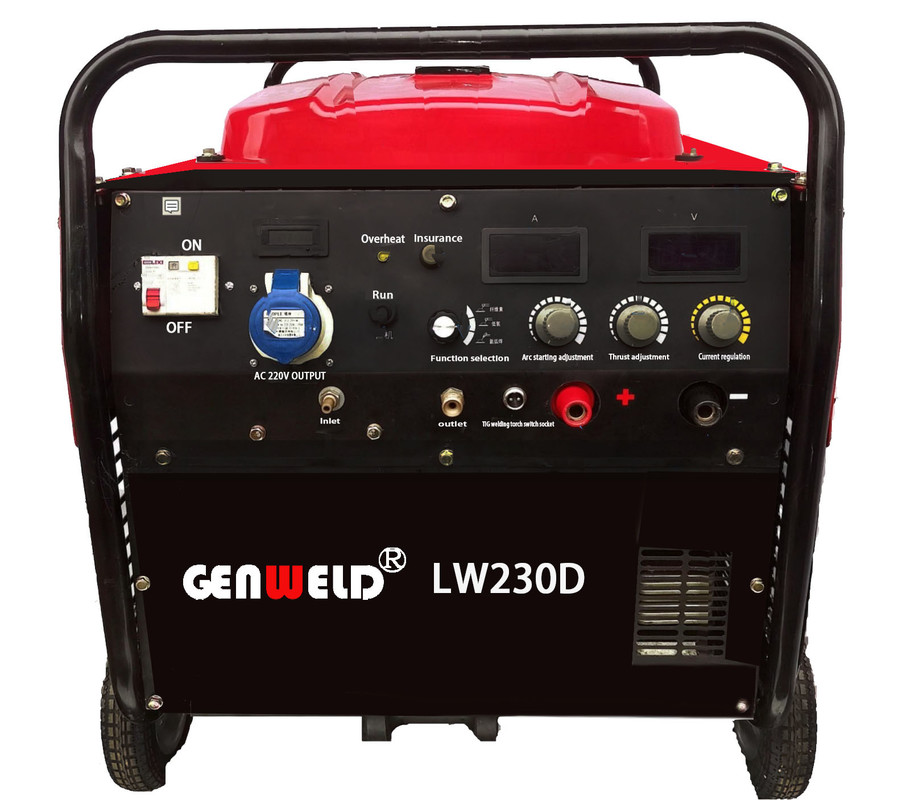

LW230D Welding generator
Detalhes do produto:
| Lugar de origem: | Chongqing, China |
| Marca: | GENWELD |
| Número do modelo: | LW230D |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 20 |
|---|---|
| Detalhes da embalagem: | 98 Kg /835×560×590 1 19 Kg /835×550×680 |
| Tempo de entrega: | 30 a 60 dias úteis |
| Termos de pagamento: | T/T, D/P |
| Habilidade da fonte: | 50 |
|
Informação detalhada |
Descrição de produto
■ Features
◎Adopting original medium frequency rare earth permanent magnet power generation technology, it features in high power, small size and light weight.
◎Auxiliary power output AC 6kW /50HZ, It can be used for power generation or welding alone, or simultaneously using. It can meet the pipeline welding and grinding at field site., it also can run hot melt welding machine,welding rod drying barrel, angle grinder, fan, water pump, etc.
◎Owns multi-welding processes such as MMA/ Cellulose downward welding/ lifting TIG.
◎With arc starting current and thrust current adjustment.
◎Welding current has digital preset/display function, and the voltage and current dual meter design makes the welding parameter display more intuitive.
◎Adopts IGBT chopping technology making the control circuit simpler, more reliable, and has good dynamic characteristics.
◎The whole machine adopts a mature and optimized frame structure, which is rainproof, dustproof and collision-proof. The circuit adopts modular design and installation, the overall structure is more compact, assembly is simple, and maintenance is convenient.
Product Parameters
| type Number | LWG-230(Gasoline) | LWG- 230C(Diesel) | |||||
|
Welding output |
Welding method | Manual welding/Cellulose down-hole welding/Argon arc welding | |||||
| MMA OCV (V) | 7 5 | ||||||
| TIG OCV (V) | 37 | ||||||
| Current range (A) | 20-220 | ||||||
| Welding current (A) | 200(MMA) | 170(MMA) | 1 55(MMA) | 220 (TIG) | 170 (TIG) | 155 (TIG ) | |
| Welding voltage (V) | 28 | 26.8 | 26. 2 | 18.8 | 16.8 | 16.2 | |
| Duty cycle | 35 % | 60% | 100% | 35 % | 60 % | 100% | |
|
AC output |
Rated voltage | 230V | |||||
| Rated current | 2 3 .9A | ||||||
| Rated power | 5.5Kw | ||||||
| Maximum power | 6Kw | ||||||
| Number of phases | Single-phase | ||||||
| frequency | 50 HZ (60 HZ optional) | ||||||
|
Engine |
Power ( KW ) | 9.5 | 8.6 | ||||
| Exhaust volume | 390cc | 499 CC | |||||
| Valve type | Overhead air valve | ||||||
| ignition system | CDI | Direct injection | |||||
| Fuel tank capacity | 25L | 18L | |||||
| Fuel consumption | 374 g/ Kw.h | 356 g/ Kw.h | |||||
| Oil warning system | have | have | |||||
| Startup method | Recoil (E-start optional) | Recoil/ E-start | |||||
| Cooling method | Forced air cooling | ||||||
| Whole set | Weight/Size (kg/mm) | 98 Kg /835×560×590 | 1 19 Kg /835×550×680 | ||||
| Protection/insulation | IP23/F | ||||||
